Fire Hydrant System

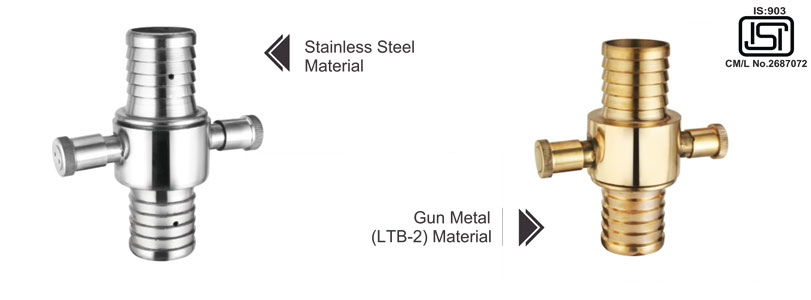

Fire Hose Delivery Coupling

Fire Hose Delivery Couplings are designed for quick, secure, and leak-proof connection of fire hoses during firefighting operations. Manufactured using premium quality Stainless Steel and Gun Metal materials, these couplings provide high durability, corrosion resistance, and reliable performance under extreme pressure conditions.

The couplings conform to IS:903 standards and are hydrostatically tested to ensure maximum safety and operational efficiency. Widely used in fire hydrant systems, industrial plants, commercial buildings, and firefighting applications, they ensure smooth water flow and easy hose connectivity during emergencies.

Available in multiple sizes and material variants, Attack Fire Hose Delivery Couplings are engineered for long service life, strong grip, and dependable firefighting performance.

Specification	Stainless Steal	Gun Metal
Size	63mm	63mm
Material	IS: 3444 Gd 1&4	LTB-2 of IS:318
Conforming Specification	IS: 903	IS: 903
Hydrostatic Test (Body Test)	Tested at 21 kgf/cm2	Tested at 21 kgf/cm2
Other Range	70mm, 52mm & 38mm	70mm, 52mm & 38mm

//////

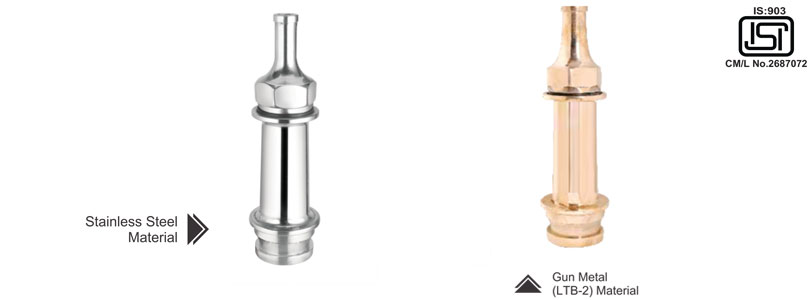

Branch Pipe & Nozzle

Branch Pipe & Nozzle systems are essential firefighting accessories designed to control, direct, and discharge water effectively during fire emergencies. Manufactured using high-quality Stainless Steel and Gun Metal materials, these branch pipes and nozzles offer excellent durability, corrosion resistance, and long operational life under demanding firefighting conditions.

Designed as per IS:903 standards, the products are hydrostatically tested to ensure safe and reliable performance. The precision-engineered nozzle design provides smooth water flow, strong grip handling, and efficient spray control for rapid firefighting response.

Available in multiple nozzle sizes and material variants, Attack Fire Branch Pipe & Nozzle products are widely used in fire hydrant systems, industrial facilities, commercial buildings, and firefighting applications where dependable performance and durability are essential.

Specification	Stainless Steal	Gun Metal
Size of Branch Pipe	63mm	63mm
Size of Nozzle	6mm, 12mm, 15mm, 20mm & 25mm	6mm, 12mm, 15mm, 20mm & 25mm
Material	IS: 3444 Gd 1&4	LTB-2 of IS:318
Conforming Specification	IS: 903	IS: 903
Hydrostatic Test (Body Test)	Tested at 21 kgf/cm2	Tested at 21 kgf/cm2
Other Range	52mm & 38mm	52mm & 38mm

//////

Landing Valve (Single Outlet)

Co2 type fire extinguisher contains CO2 gas, Which is non-conductive, non-corrosive and suitable for quenching Class B & C fires involving flammable liquid i.e. oil, solvent, flammable gases, industrial & electrical equipment, etc.

Specification	Stainless Steal	Gun Metal
Size	Inlet 75/80mm with one no. 63mm female outlet instantaneous coupling with pullout type lugs.	Inlet 75/80mm with one no. 63mm female outlet instantaneous coupling with pullout type lugs.
Material	IS: 3444 Gd 1&4	LTB-2 of IS:318
Conforming Specification	IS: 5209	IS: 5290
Hydrostatic Test (Body Test)	Tested at 21 kgf/cm2	Tested at 21 kgf/cm2
Water Tightness (Seat Test)	Tested at 14 kgf/cm2	Tested at 14 kgf/cm2
Flow Test	900 LPM discharge at 7 kg/cm2	900 LPM discharge at 7 kg/cm2
Other Range	38mm & 52mm	38mm & 52mm

Landing Valve (Double Outlet)

Mechanical foam type fire extinguisher is most effective on class A & B (Flammable and volatile liquid i.e., oil, petroleum, diesel, points, alcohol etc.) where fast fire knockdown and blanketing effect is essential. Aqueous Film Forming Foam property it is also used in Class A Fire. It contains AqueousFilm Forming Foam (AFFF) compound, it has been used in the extinguisher to form an aqueous film and thick blanket of foam on the surface of fire, excluding the supply of oxygen thereby extinguishing the fire and preventing re-ignition

Specification	Stainless Steal	Gun Metal
Size	Inlet 100mm with two no. 63mm female outlet instantaneous coupling with pullout type lugs.	Inlet 100mm with two no. 63mm female outlet instantaneous coupling with pullout type lugs.
Material	IS: 3444 Gd 1&4	LTB-2 of IS:318
Conforming Specification	IS: 5209	IS: 5290
Hydrostatic Test (Body Test)	Tested at 21 kgf/cm2	Tested at 21 kgf/cm2
Water Tightness (Seat Test)	Tested at 14 kgf/cm2	Tested at 14 kgf/cm2
Flow Test	1800 LPM discharge at 7 kg/cm2	1800 LPM discharge at 7 kg/cm2

First Aid Hose Reel For Fire Fighting

Attack Fire Dry Powder (Stored Pressure) ABC/BC type Fire Extinguishers are suitable for

class A, B & C/BC fires as well as Electrical Fire. This is a versatile and multipurpose Fire Extinguisher and is easily identifiable to use on any class of fire. The extinguisher contains Mono Ammonium Phosphate / Sodium-bi-carbonate based Dry Powder as extinguishing medium and is pressurized with dry nitrogen gas. It is fitted with pressure gauge and its needle in green zone indicates the serviceability of the extinguisher.

Suction Collecting Heads

A clean agent type fire extinguisher is non-conductive and suitable for all classes of fire: A, B & C. It does not leave any residue after discharge, hence suitable for computer sever room, electronic circuitry, telephone exchange, and other sensitive equipments. It is a perfect replacement for Halon 1211 and is environmentally friendly. Available in capacities of 1kg, 2kg, 4kg & 6kg in portable fire extinguishers and 2kg, Skg & 10kg in modulartype

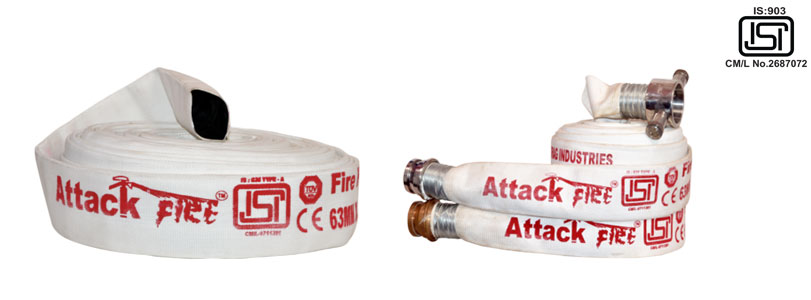

RRL Hose for Fire Hydrant System

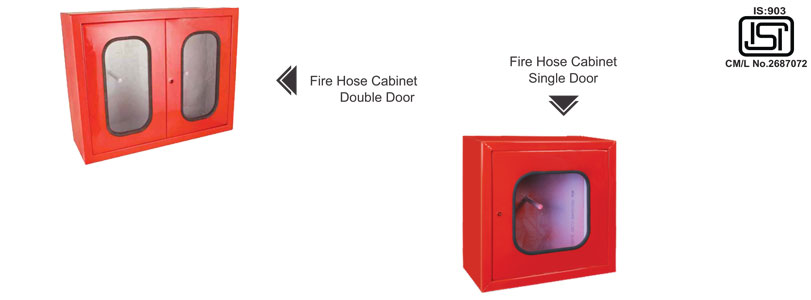

Fire House Cabinets

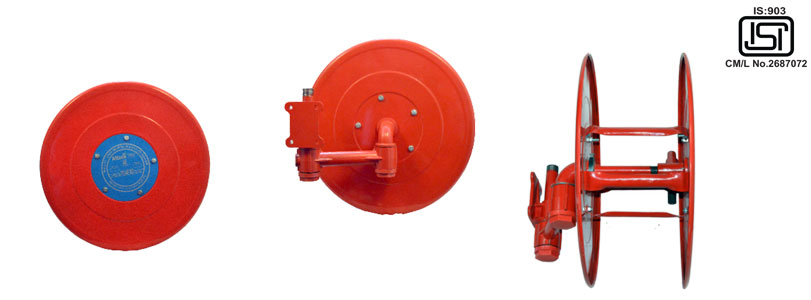

Hose Reel Drum

Corrosion Free / Leakage Free / Rust Free / Stores Less Space / Ready to Move / Power Coated / Light Weight

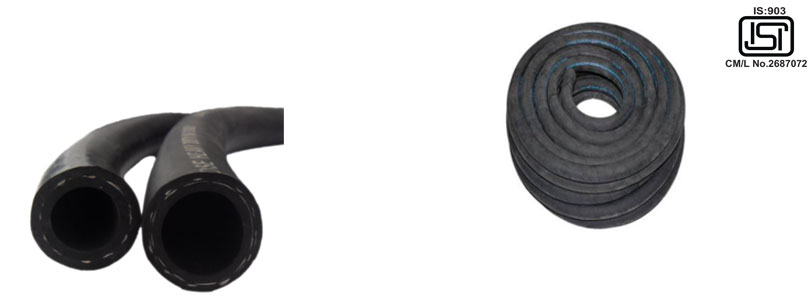

Hose Reel Rubber Pipe
